YE3系列高效三相异步电动机
概述
       YE3系列高效率三相异步电动机是采用新材料、新工艺和优化设计而制造的全封闭、自扇冷鼠笼三相异步电动机。是新一代节能电机。
       YE3系列电动机中心高从H80~355,功率从.75KW~315KW,级数为2、4、6。

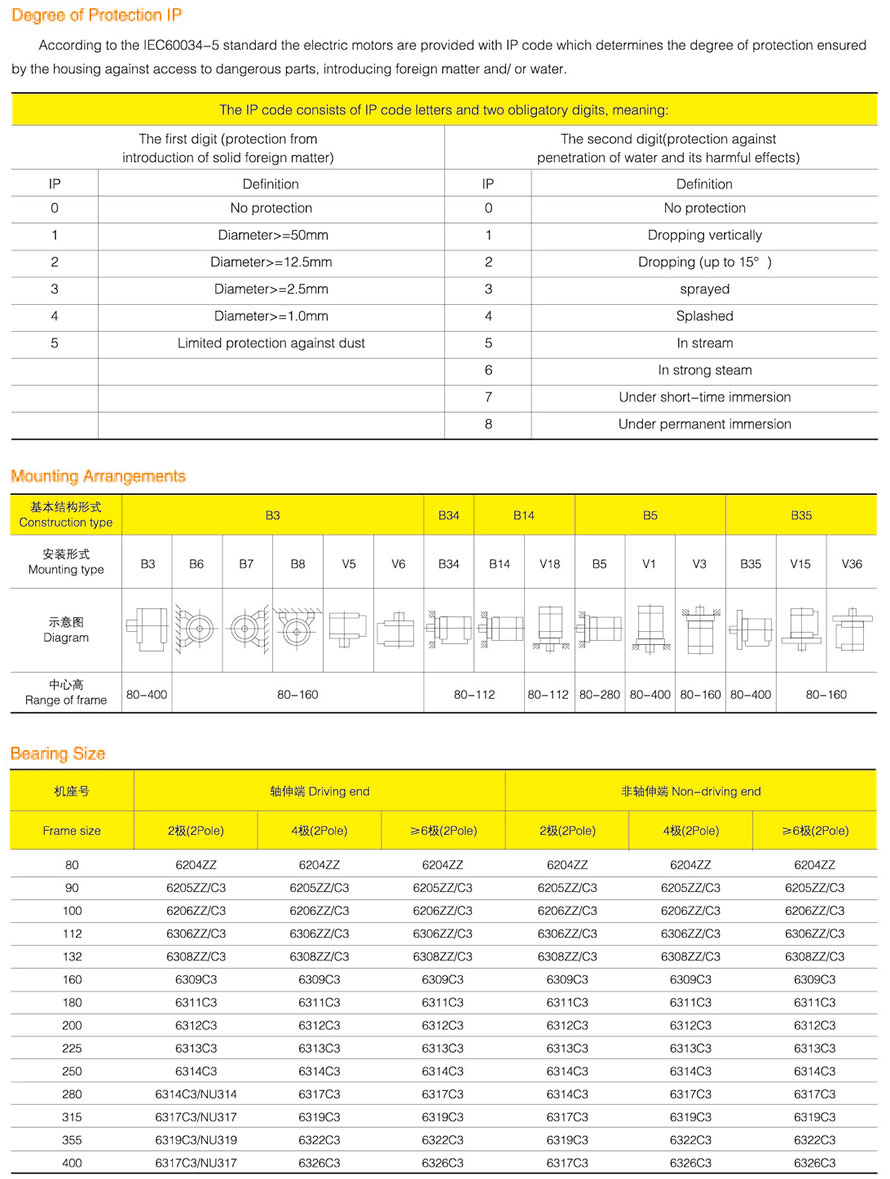

       YE3系列电动机防护等级为IP55,冷却方式为IC411,安装尺寸符合ICE标准。额定电压为400V,额定频率为50HZ。工作环境温度不超过40℃,海拔不超过1000米。工作方式:连续(S1)。
       YE3系列节能型三相异步电动机具有办事效率高,起动转矩打,噪音低,结构合理。冷却散热条件成熟,本系列电动机为一般用途的三相异步电动,可用于驱动各种通用机械设备,如压缩机、风水、水泵等机械设备,也可在石油、化工、医药、矿山及其它(如环境使用条件特殊)。

Introduction
YE3 series high efficiency three-phase asynchronous motor is a fully enclosed, self-fan cooled squirrel cage three-phase asynchronous motor manufactured by new materials, new technology and optimized design. Is a new generation of energy-saving motors.
YE3 series motor center height from H80 ~ 355, power from .75KW ~ 315KW, the number of stages is 2, 4, 6.
YE3 series motor protection grade is IP55, cooling method is IC411, installation size is in line with ICE standard. The rated voltage is 400V and the rated frequency is 50HZ. The working environment temperature does not exceed 40 ° C, and the altitude does not exceed 1000 meters. Working mode: continuous (S1).
YE3 series energy-saving three-phase asynchronous motor has high efficiency, low starting torque, low noise and reasonable structure. The cooling and cooling conditions are mature. This series of motors is a general-purpose three-phase asynchronous electric motor. It can be used to drive various general mechanical equipment such as compressors, Feng Shui, pumps and other mechanical equipment. It can also be used in petroleum, chemical, pharmaceutical, mining and other ( If the environment is used in special conditions).
